Adjustments
● Electronic Adjustments
Multiple independent adjustment possibilities with **3 motors** offer patient comfort, plus a reduction in work for staff.
2 motors as standard:
- Backrest
- Seat tilt
- Legrest
- Seat height adjustment (optional)
● Manual adjustment
- Footrest adjustment manually

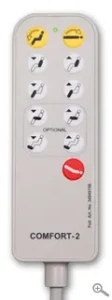

Handset
Especially designed for medical applications:
- Longlife micro-switches are located under an exchangeable keypad foil
- Liquid proof housing with IP 67 protection
- Easy-to-use 11 buttons handset
Dedicated grey buttons for each movement.
- Yellow coloured buttons to set entry, bed positions by multimovement
- The head-down “Trendelenburg” posit ion can be reached easily from any previous one by using the red button
- Individual buttons for optional movement (seat tilt adjustment and footrest adjustment)

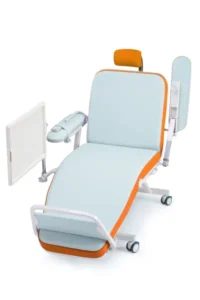

Entry Position
● Supporting the entry
By using the button on the handset, the chair can be brought to the **upright (Entry) position** automatically from any previous one.
This feature allows the patient to **easily enter or leave the chair** with minimal effort.
Bed Position
● Perfectly horizontal Bed position
Especially designed construction ensures achieving a **perfectly horizontal Bed position** for maximum patient comfort while transitioning through several relaxation positions.
By using the button on the handset, the chair can be brought automatically into the **BED position**.
Trendelenburg Position
TRB position
The backrest adjusting range ensures Trendelenburg position.
Trendelenburg position can be set by using the red button on handset.

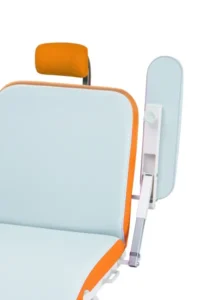

Tilt-up Armrest
The solid upholstered armrest makes it possible to achieve the most suitable and restful arm position for any physique.
It can adjusted in height and entry is facilitated by simply tilting it up.
The multilayered soft armrest cushion is completely sealed against liquids and ensures improved patient comfort.
Optionally the distance between armrests can be adjusted also by swivelling completely.
Brake System/Castors
Diameter 7,5 cm twin wheel castor with total lock.
Locks the wheels (twin wheel) and swivel simultaneously for maximum stability when the equipment is stationary.
- Twin wheel rotational motion in both directions (lockable)
- Swivel motion in both directions (lockable)
